4 - Surveys

Objective

Demonstrate the use of Ansible Automation controller survey feature. Surveys set extra variables for the playbook similar to ‘Prompt for Extra Variables’ does, but in a user-friendly question and answer way. Surveys also allow for validation of user input.

Guide

You have installed Apache on all hosts in the job you just ran. Now we’re going to extend on this:

  • Use a proper role that has a Jinja2 template to deploy an index.html file.

  • Create a job Template with a survey to collect the values for the index.html template.

  • Launch the job Template

Additionally, the role will make sure that the Apache configuration is properly set up for this exercise.

Tip

The survey feature only provides a simple query for data - it does not support four-eye principles, queries based on dynamic data or nested menus.

The Apache-configuration Role

The playbook and the role with the Jinja2 template already exist in the Github repository https://github.com/ansible/workshop-examples in the directory rhel/apache.

Head over to the Github UI and have a look at the content: the playbook apache_role_install.yml merely references the role. The role can be found in the roles/role_apache subdirectory.

  • Inside the role, note the two variables in the templates/index.html.j2 template file marked by {{…​}}.
  • Notice the tasks in tasks/main.yml that deploy the file from the template.

What is this playbook doing? It creates a file (dest) on the managed hosts from the template (src).

The role deploys a static configuration for Apache. This is to make sure that all changes done in the previous chapters are overwritten and your examples work properly.

Because the playbook and role is located in the same Github repo as the apache_install.yml playbook you don't have to configure a new project for this exercise.

Create a Template with a Survey

Now you create a new Template that includes a survey.

Create Template

  • Go to Automation Execution → Templates, click the Create template button, and choose Create job template.

  • Fill out the following information:

Parameter Value
Name Create index.html
Job Type Run
Inventory Workshop Inventory
Project Workshop Project
Execution Environment Default execution environment
Playbook rhel/apache/apache_role_install.yml
Credentials Workshop Credential
Limit web
Options Privilege Escalation
  • Click Create job template.

Warning

Do not run the template yet!

Add the Survey

  • In the Template, click the Survey tab, then click Create survey question.

  • Fill out the following information:

Parameter Value
Question First Line
Answer Variable Name first_line
Answer Type Text

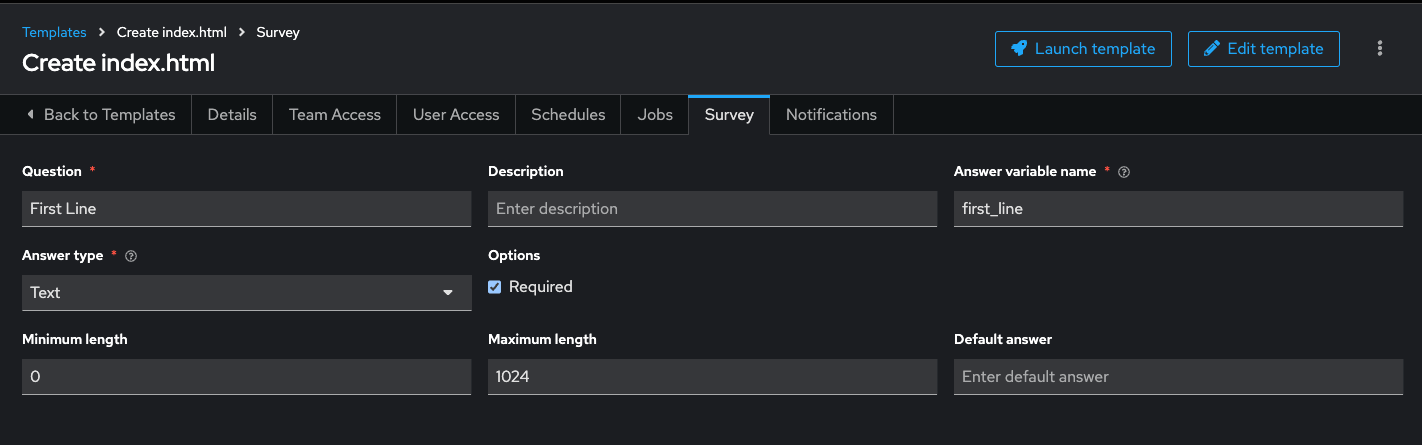

Survey Q1

  • Click Create survey question.
  • Click Create survey question to create a second Survey Question
Parameter Value
Question Second Line
Answer Variable Name second_line
Answer Type Text

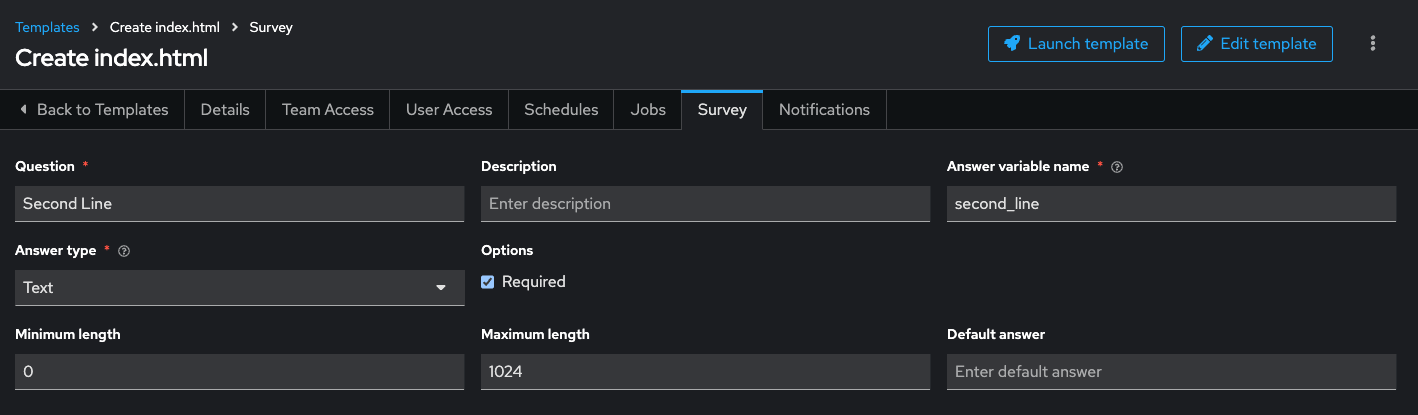

Survey Q2

  • Click Create survey question.
  • Enable the survey by toggling the Survey disabled button to the On posiiton.

Launch the Template

Now, launch the Create index.html job template by clicking the Launch template button.

Before the actual launch the survey will ask for First Line and Second Line. Fill in some text and click Next. The Preview window shows the values, if all is good run the Job by clicking Finish.

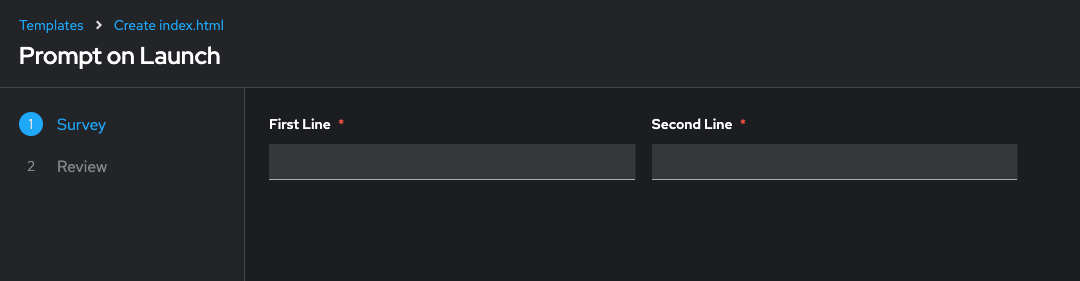

Survey Launch

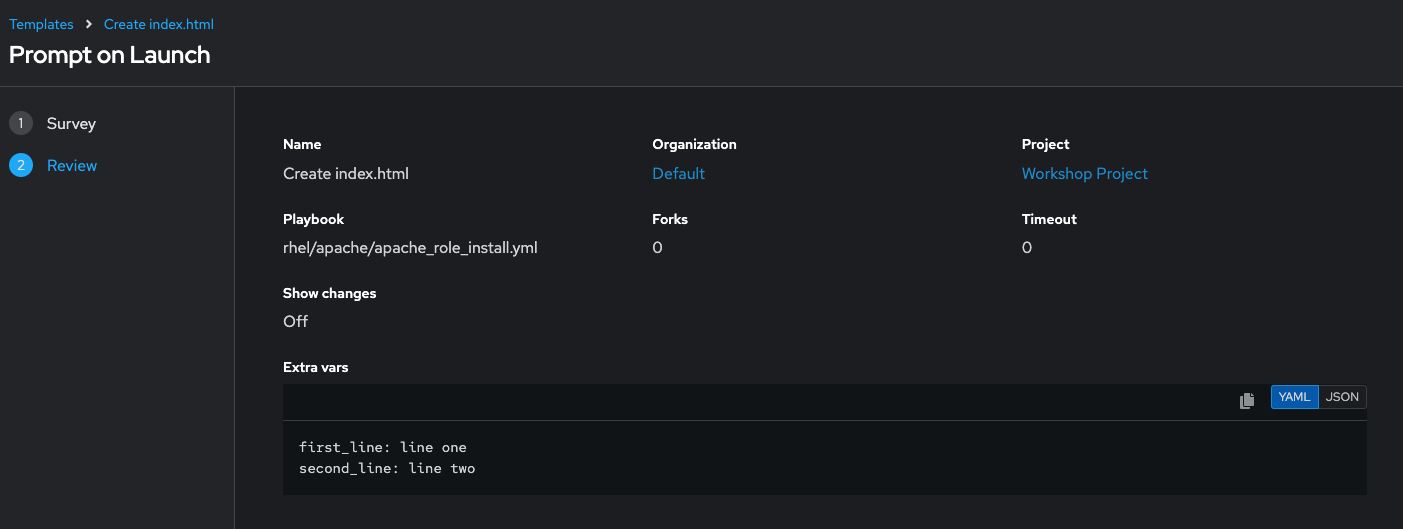

Survey Review

After the job has completed, check the Apache homepage. In the SSH console on the control host, execute curl against node1:

[student1@ansible-1 ~]$ curl http://node1
<body>
<h1>Apache is running fine</h1>
<h1>This is survey field "First Line": line one</h1>
<h1>This is survey field "Second Line": line two</h1>
</body>

Note how the two variables where used by the playbook to create the content of the index.html file.
